Pop Up Conference Table AV Box 2 Power, 2 Data, 2 HDMI, 2 USB, White
| Q&A$549.00 $620.85
Free shipping on orders over $99
The TNP327W from Altinex is a single sided pop up box enclosure that houses your video, audio, data, and power connections discretely in your conference room table. When shut all you see is the beautiful and durable white metal powder coated finish, press the top and the unit flips up and is ready to be plugged into.
The Most Desired Connections Needed in Conference Rooms
The cable management box holds 2 power, 2 HDMI, 2 passive USB 3.0, and 2 RJ45 Cat6 data jacks. These connections cover the most commonly needed ports in any conference room or boardroom. Since there are two of each type, two users can be plugged in at once.
Beautiful Flush Appearance that Pops Up When Needed
When in the closed position the white top is nearly flush with your table, the top is small coming in at only 5.7" x 5.2" making it very unobtrusive in your table. The top is metal that has been powder coated making it scratch resistant and able to withstand the rigors of constantly opening and closing. When you press the top the unit flips up at a 45 degree angle, so you can plug in your connections. To close, unplug your connections and press the top till it latches closed, and it is back to being hidden in your table. The hydraulic spring provides a super smooth and quiet operation for opening and closing.
Easy Installation for USA or Canada!
The pop up can be installed in table thicknesses up to 2.25", if your table is thicker than this, you will need to thin down the underside of the table where the pop up is to be installed. After cutting the 5.3" x 4.8" hole in your table, place the pop up in the hole, then secure the unit to the underside of the table with the included brackets. Your cables can then be plugged in, the video and data cables are 6' long with male ends, the power is a single 9' long 3 prong plug cord.
The tilt up box has been UL certified to work in the USA, and cUL certified for installations in Canada. The pop up can be installed in any table surface or podium that needs a concealed way to manage your connections in an attractive, functional, and affordable pop up.
Free Dual Port USB Charger with Each TNP327W Ordered!
If you want to turn the USB connections into USB charging ports, just plug one, or both of the ends of the male USB cables into the included 2 port USB charger.
Customizable if Needed
The connections in this pop up can be changed to meet your needs if required for your application, please contact us for a quote.
Specifications:
Color: White powder coated aluminum
2 power, 2 RJ45, 2 HDMI, 2 USB 3.0
6' male ended AV cables
Single 9' male ended power cable
Free 2 port USB charger
Smooth and quiet gas spring operation
UL listed for USA, cUL listed for Canada
UL File # E254082

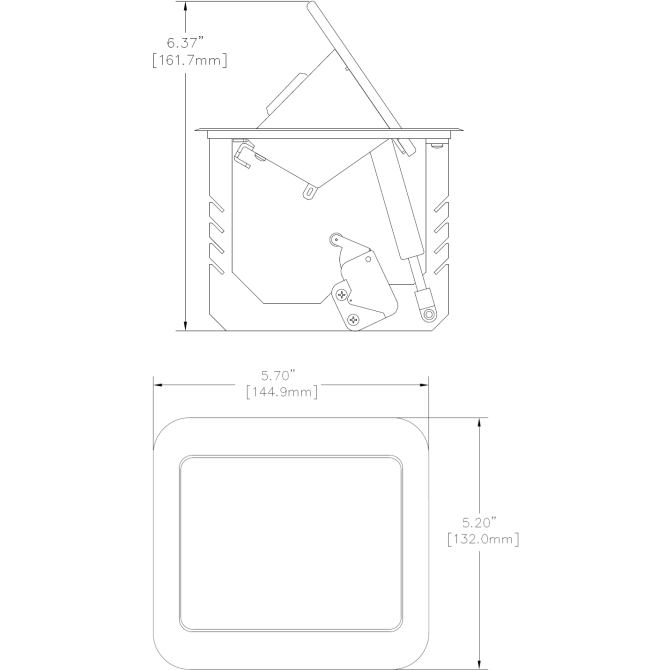

Bezel size: 5.7" x 5.2"
Cutout size: 5.3" x 4.8"
Depth: 3.86"
Pop up height: 2.51"
Works in table thickness up to 2.5"
Weight: 2.8lbs
Includes all mounting hardware
10 year warranty, 1 year on spring
Replaceable spring, part # AC401-307
Altinex TNP327W User Guide (PDF)
Altinex TNP327W Cutout Template (PDF)
Color: White powder coated aluminum
2 power, 2 RJ45, 2 HDMI, 2 USB 3.0
6' male ended AV cables
Single 9' male ended power cable
Free 2 port USB charger
Smooth and quiet gas spring operation
UL listed for USA, cUL listed for Canada
UL File # E254082
Bezel size: 5.7" x 5.2"
Cutout size: 5.3" x 4.8"
Depth: 3.86"
Pop up height: 2.51"
Works in table thickness up to 2.5"
Weight: 2.8lbs
Includes all mounting hardware
10 year warranty, 1 year on spring
Replaceable spring, part # AC401-307
