TNP327 Pop Up Conference Table AV Box, 2 Power, 2 Data, 2 HDMI, 2 USB, Black
| Q&A$401.06
Free shipping on orders over $99
Altinex TNP327 Pop Up Conference Table Audio, Video, and Power Pop Up Box
The pop up box is a single sided enclosure that houses your video, audio, data, and power connections discretely in your conference room table. When shut all you see is the beautiful and durable anodized black aluminum finish, press the top and the unit flips up and is ready to be plugged into.
The Most Desired Connections Needed in Conference Rooms

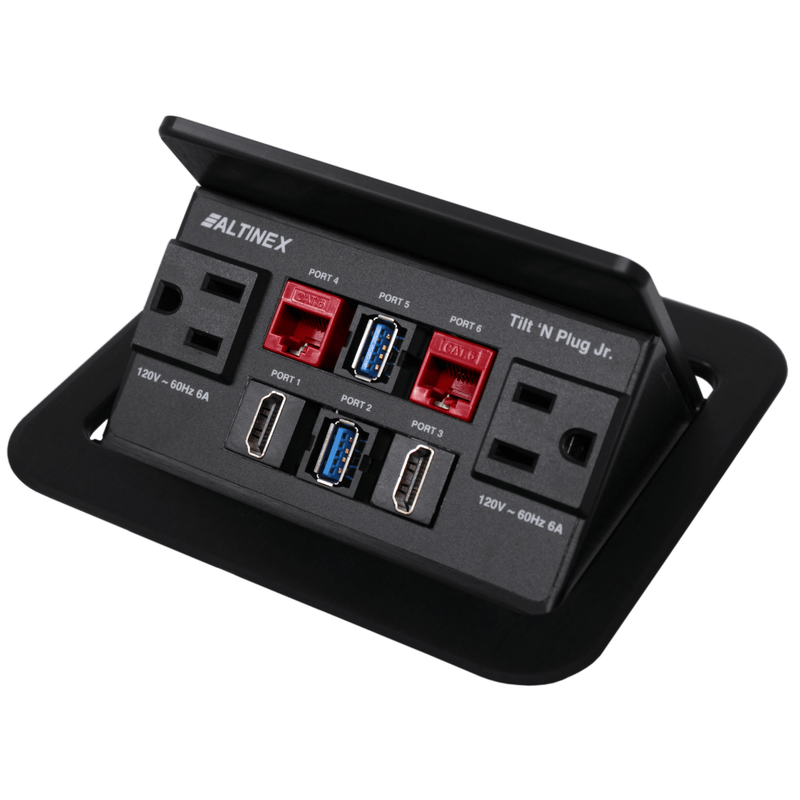

The cable management junction box holds 2 power, 2 HDMI, 2 passive USB 3.0 (or use as charging), and 2 RJ45 Cat6 data jacks. These connections cover the most commonly needed ports in any conference room or boardroom. Since there are two of each type, two users can be plugged in at once.
Beautiful Flush Appearance that Pops Up When Needed

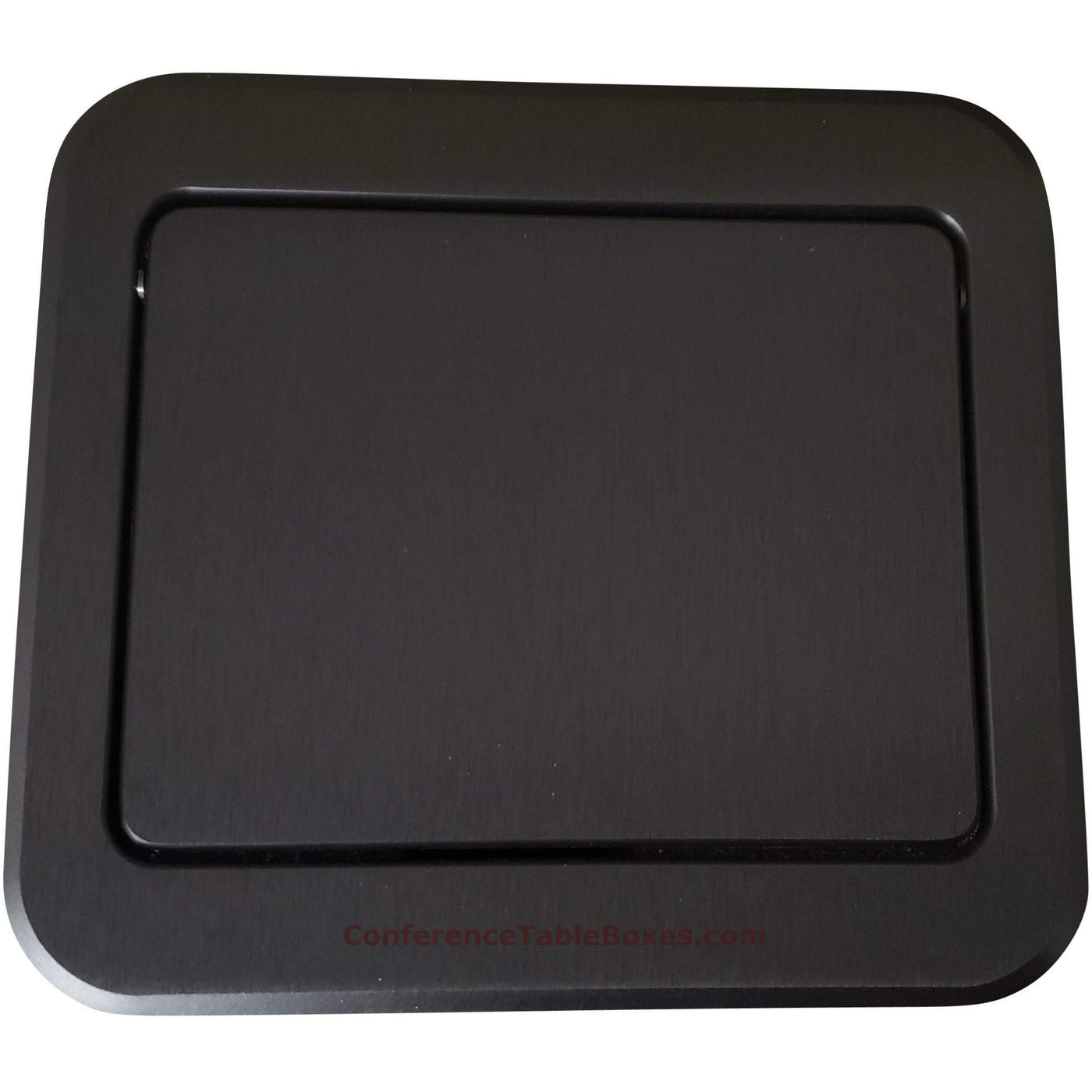

When in the closed position the black anodized aluminum top is nearly flush with your table, the top is small coming in at only 5.7" x 5.2" making it very unobtrusive in your table. When you press the top the unit flips up at a 45 degree angle, so you can plug in your connections. To close, unplug your connections and press the top till it latches closed, and it is back to being hidden in your table. The hydraulic spring provides a super smooth and quiet operation for opening and closing.
Easy Installation for USA or Canada!

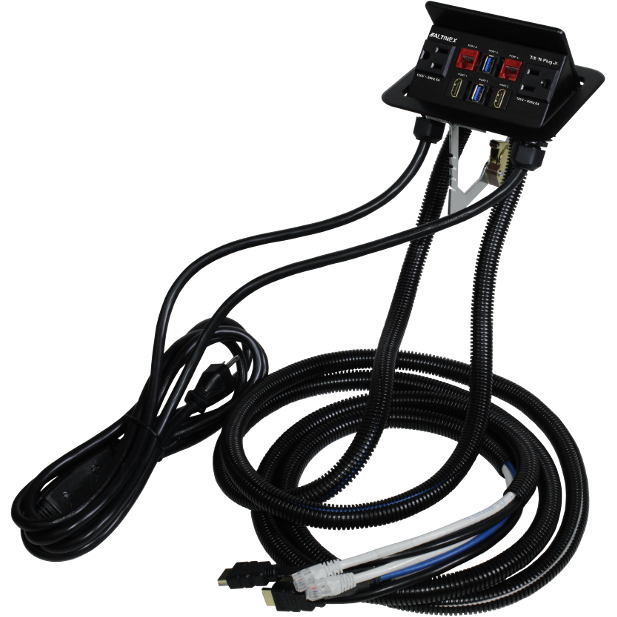

The pop up can be installed in table thicknesses up to 2.25", if your table is thicker than this, you will need to thin down the underside of the table where the pop up is to be installed. After cutting the 5.3" x 4.8" hole in your table, insert the pop up in the hole, then secure the unit to the underside of the table with the included brackets. Your cables can then be plugged in, the video and data cables are 6' long with male ends, the power is a single 9' long 3 prong plug cord. The tilt up box has been UL certified to work in the USA, and cUL certified for installations in Canada. The pop up can be installed in any table surface or podium that needs a concealed way to manage your connections in an attractive, functional, and affordable pop up.
Free Dual Port USB Charger with Each TNP327 Ordered!
If you want to turn the USB connections into USB charging ports, just plug one, or both of the ends of the male USB cables into the included 2 port USB charger.
Customizable if Needed
The connections in this pop up can be changed to meet your needs if required for your application, please contact us for a quote.
Specifications:
Color: Black anodized aluminum
2 power, 2 RJ45, 2 HDMI, 2 USB 3.0
6' male ended AV cables
Single 9' male ended power cable
Free 2 port USB charger!
Smooth and quiet gas spring operation
UL listed for USA, cUL listed for Canada
UL File # E254082
Bezel size: 5.7" x 5.2"
Cutout size: 5.3" x 4.8"
Depth: 3.86"
Pop up height: 2.51"
Works in table thickness up to 2.5"
Weight: 2.8lbs
Includes all mounting hardware
10 year warranty, 1 year on spring
Replaceable spring, part # AC401-307
Altinex TNP327 User Guide (PDF)
Altinex TNP327 Cutout Template (PDF)
Color: Black anodized aluminum
2 power, 2 RJ45, 2 HDMI, 2 USB 3.0
6' male ended AV cables
Single 9' male ended power cable
Free 2 port USB charger!
Smooth and quiet gas spring operation
UL listed for USA, cUL listed for Canada
UL File # E254082
Bezel size: 5.7" x 5.2"
Cutout size: 5.3" x 4.8"
Depth: 3.86"
Pop up height: 2.51"
Works in table thickness up to 2.5"
Weight: 2.8lbs
Includes all mounting hardware
10 year warranty, 1 year on spring
Replaceable spring, part # AC401-307
Shipping Policy
This item qualifies for free ground shipping to the Contiguous USA "lower 48" via UPS ground. If in stock, this item ships from Boise, ID the same business day as being purchased if ordered by 5pm EST.
Return Policy
If you are not completely satisfied with your purchase you may return this item for a full refund of the merchandise total within 30 days of your shipment date; please note that you are responsible for all return shipping charges unless the item is defective or damaged. Return credits are issued within 1 business day to your original method of payment once the item is received and inspected.
Return Eligibility
Items must be in new condition and in the original packaging to qualify for a full refund (please do not modify the product in any way). If these conditions are not met then the return could be subject to a restocking fee or the product sent back to sender.
Questions & Answers
Ask a Question-
Can I get different connections in this pop up?
Yes, the connections can be customized to meet your needs. Please contact us for a quote.
