Conference Table Connectivity Box 2 Power, 1 HDMI, 2 Data Ports, Black
| Q&A$461.60
Free shipping on orders over $99

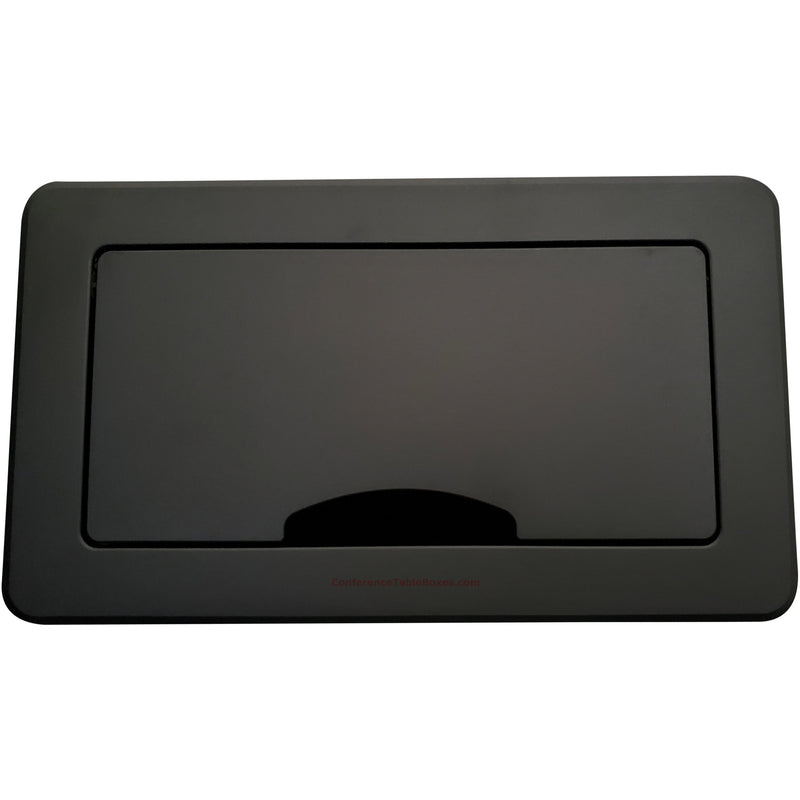

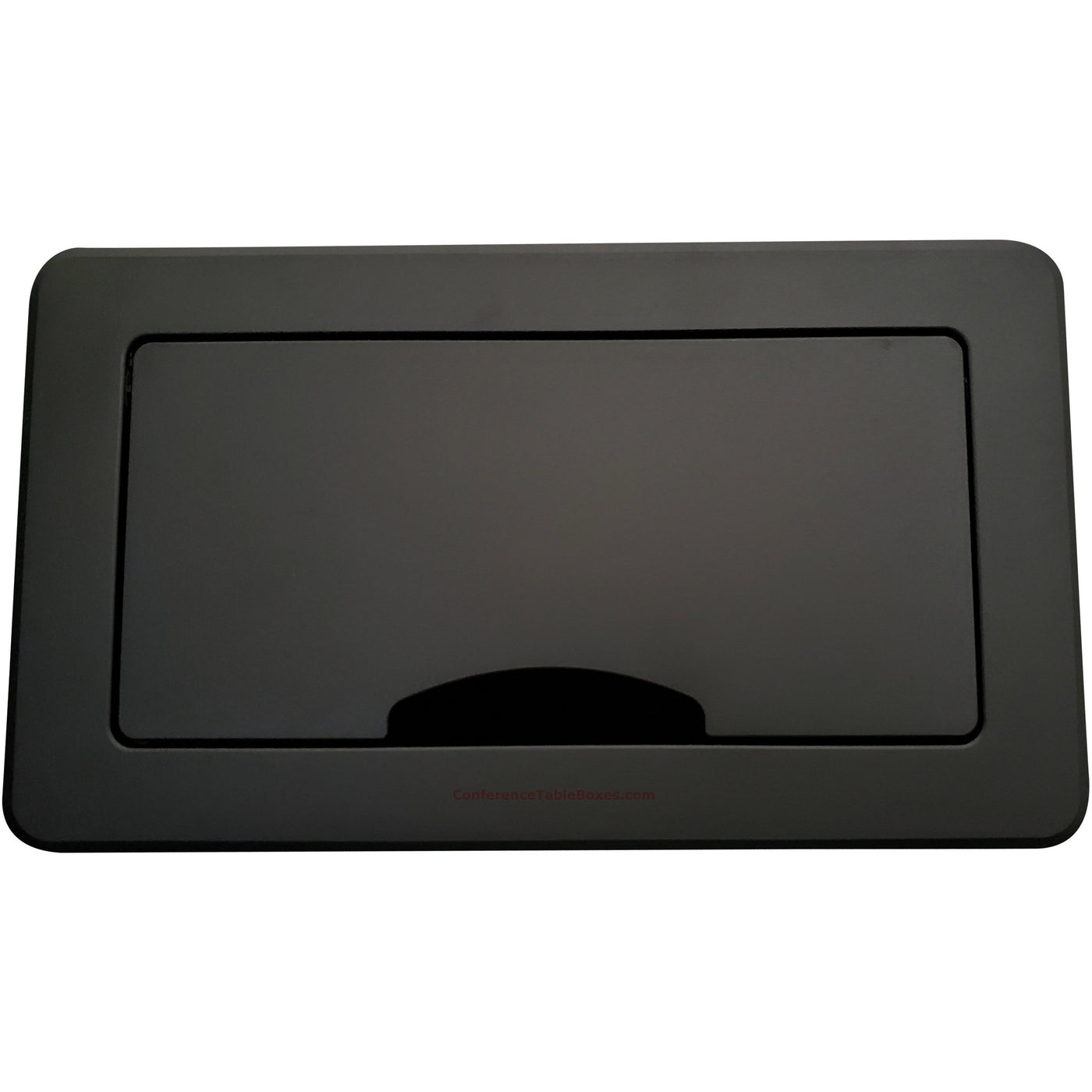

The Kramer TBUS-6-B1 holds your connections in a stylish and compact rectangular box for your conference room or meeting room table cable management needs. The top is made out of an extremely durable sand blasted black anodized aluminum finish that is scratch resistant.
Just the Right Amount of Connections

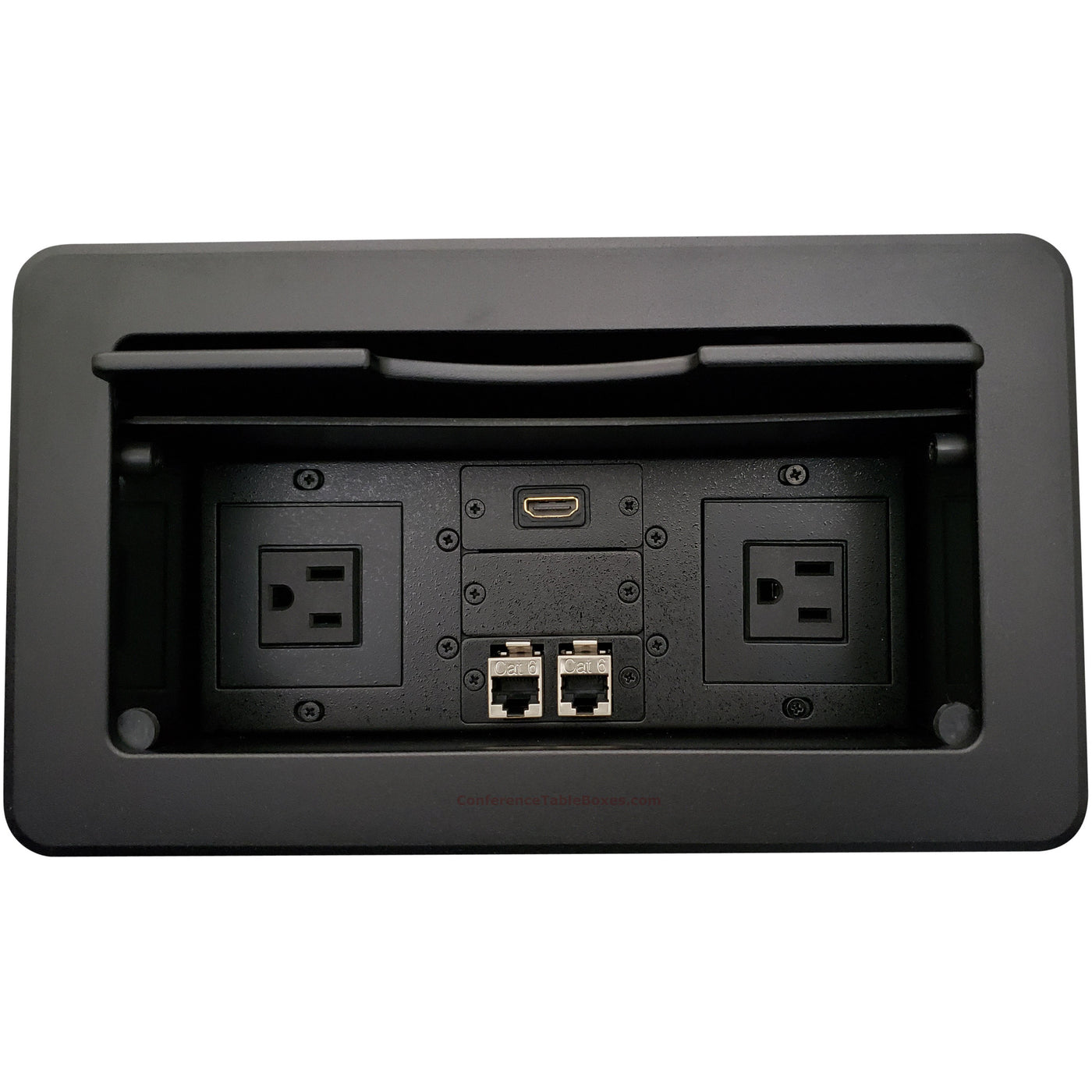

Inside the cable well you will find 2 power outlets, 1 HDMI, and 2 Cat6 connections. There is 1 blank plate that can be used in the future to add an additional connection. All the video and data connections on the back side are female, so you just need to plug in your cable and you are done. The Y power cable is 6' long and is a single plug.
Retracting Lid Ensures No Interference Connecting Cables

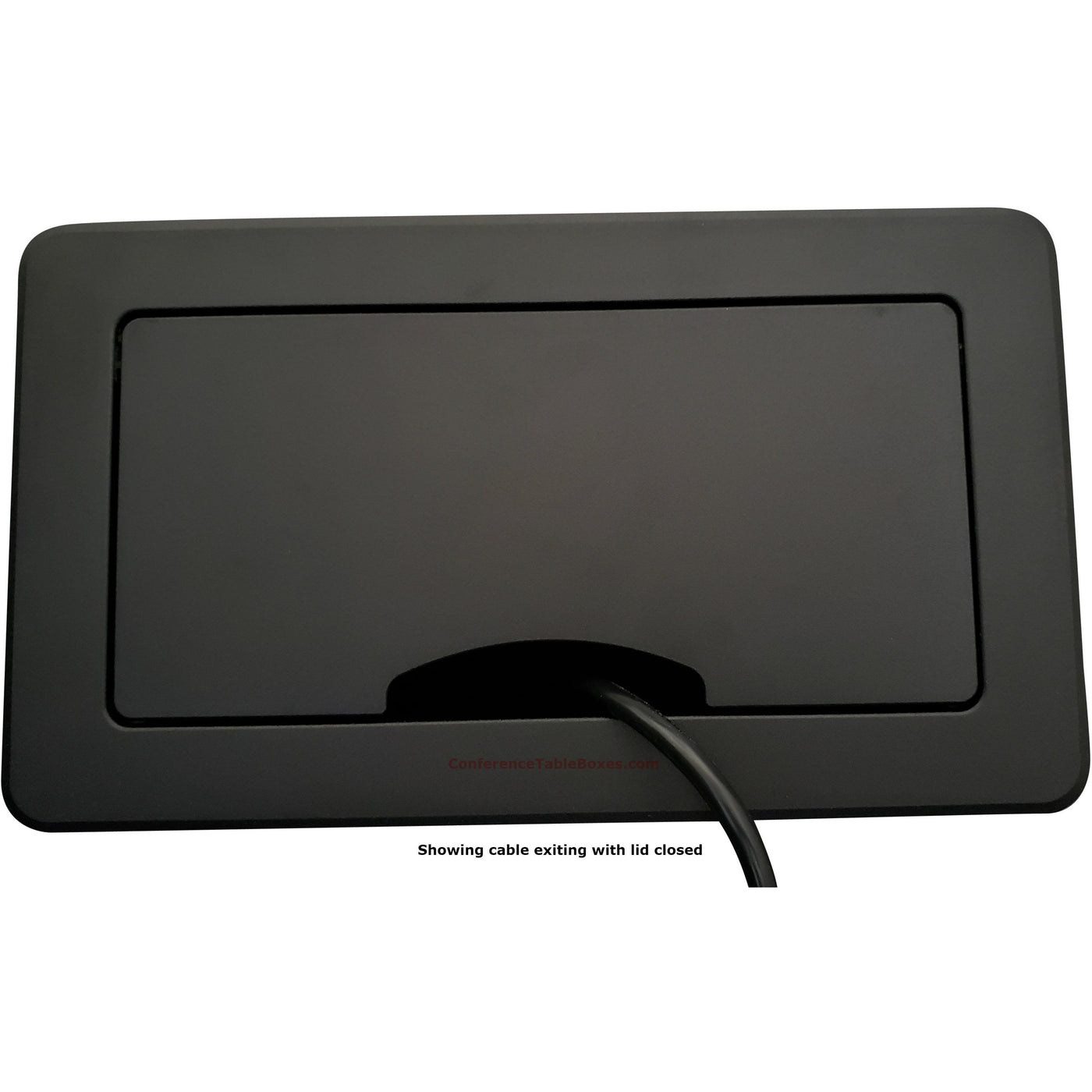

The box features a retracting lid, lift up and slide it back down into the box so it is out of the way when plugging in your connections. There is an opening in the lid that allows you to keep cables plugged in and the lid closed. An example where this is a perfect scenario, is if you will always have a phone plugged in that sits on your table next to the box. The top bezel is only .06" thick creating a near flush and sleek appearance in the table.
Easy Installation

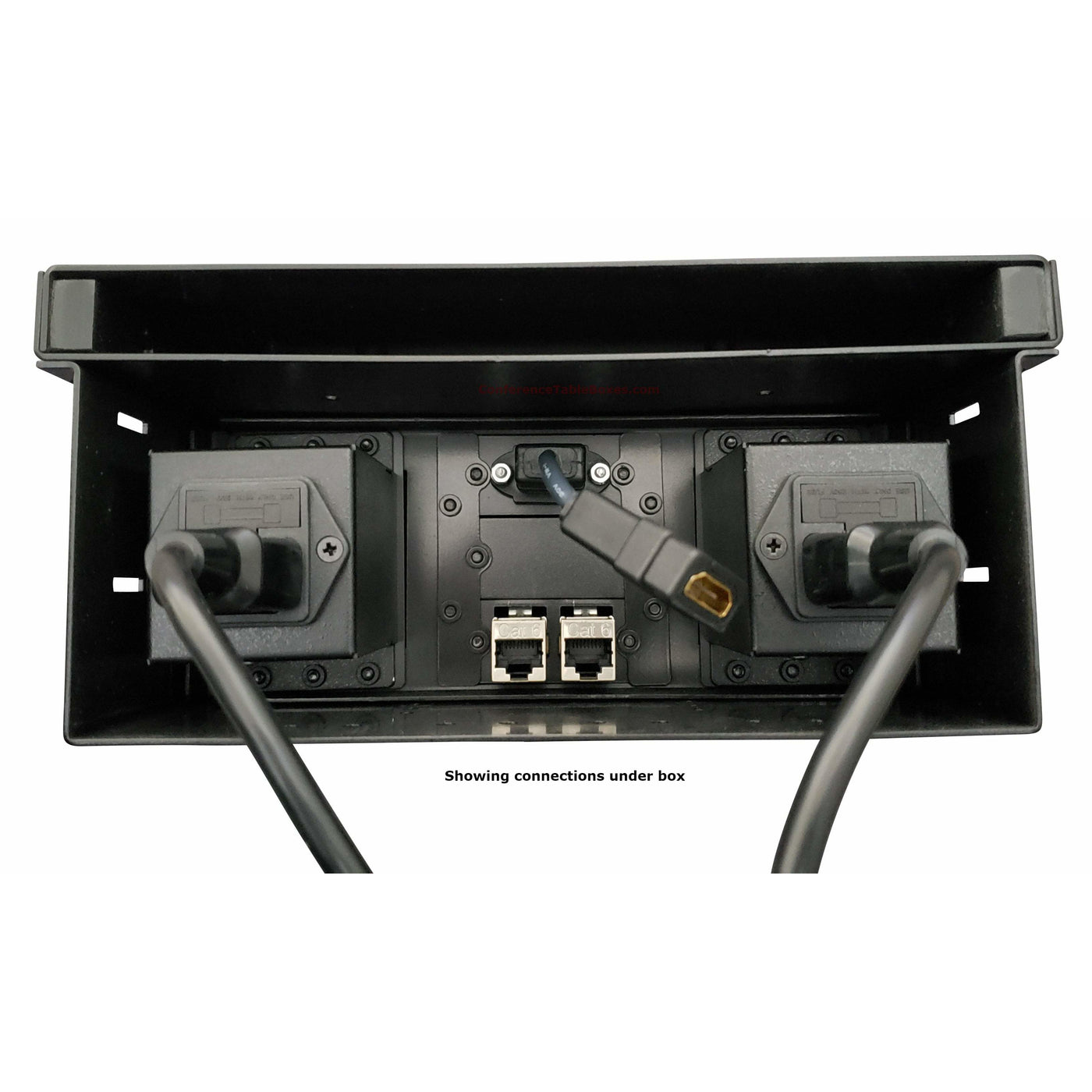

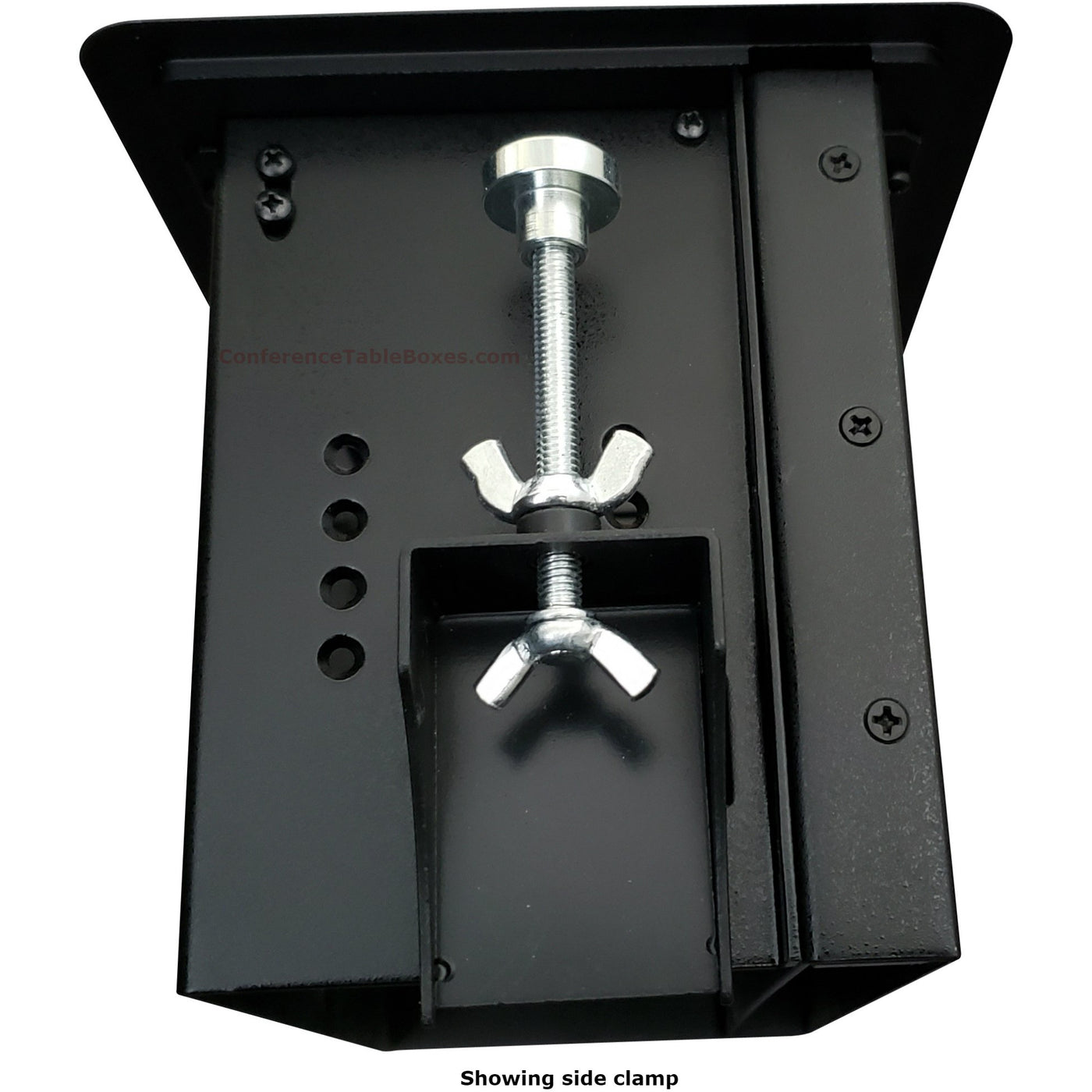

Installing the box is quick and simple process, cut your hole with the included metal template and place the box in the cutout. Use the supplied bracket to attach to the side of the box, you then can tighten the brackets to the bottom of your table to make the box secure so it won't move. The box can be installed in tables with a thickness of up to 3". The connections can be moved lower in the box to accommodate larger plugs, or if you just want to keep your cables plugged in and close the lid. The power cable is a single 6' long cord, the HDMI and Cat6 connections are female on the backside making it a snap to just plug in your own cables to complete installation.
The box is modular so you can change the connections in the box down the road if your requirements change, or new technologies become available. The box and the connections inside have a long 7 year warranty.
Customizable
Like the box but need different connections? Just not finding exactly what you want? If you need help finding the perfect table box with your exact connections, we would love to help. Please contact us via live chat, or call 888-507-5957.
Specifications:
Color: Sand blasted black anodized aluminum
Power outlets: 2
Connections: 1 HDMI, 2 Cat6
Connections are female on the back side
Bezel size: 9.6" x 5.5"
Depth: 5.35"
Cutout size: 8.87" x 4.85"
Works in tables up to 3" thick
Opening in lid for cable pass through
Fully retracting lid
Connections inside are height adjustable
One 6' power cord with 3 prong plug
All mounting hardware included
cUL listed, #E226674
Configurable for future changes
Minor assembly required
7 year warranty
Specifications (PDF)
User Manual (PDF)
Cutout Template (PDF)
Color: Sand blasted black anodized aluminum
2 power outlets inside the box
Connections: 1 HDMI, 2 Cat6
Connections are female on the back side
Bezel size: 9.6" x 5.5"
Depth: 5.35"
Cutout size: 8.87" x 4.85"
Works in tables up to 3" thick
Opening in lid for cable pass through
Fully retracting lid
Connections inside are height adjustable
One 6' power cord with 3 prong plug
All mounting hardware included
cUL listed, #E226674
Configurable for future changes
Minor assembly required
7 year warranty
Specifications (PDF)
User Manual (PDF)
Cutout Template (PDF)
Kramer TBUS-6-B1 Specifications (PDF)
Kramer TBUS-6-B1 User Manual (PDF)
Kramer TBUS-6-B1 Cutout Template (PDF)
