1080p HDMI over IP Transmitter, HDCP, AV-over-IP Matrix, 390'

  |   Q&A

$296.25

Free shipping on orders over $99

Part #: TP115-401
Vendor: Altinex
Ships from manufacturer
You will be notified within 1 business day of the expected ship date
Ship To:
Check Arrival Date and Cost
Estimated Arrival
Estimated Cost
Maximum quantity available reached.

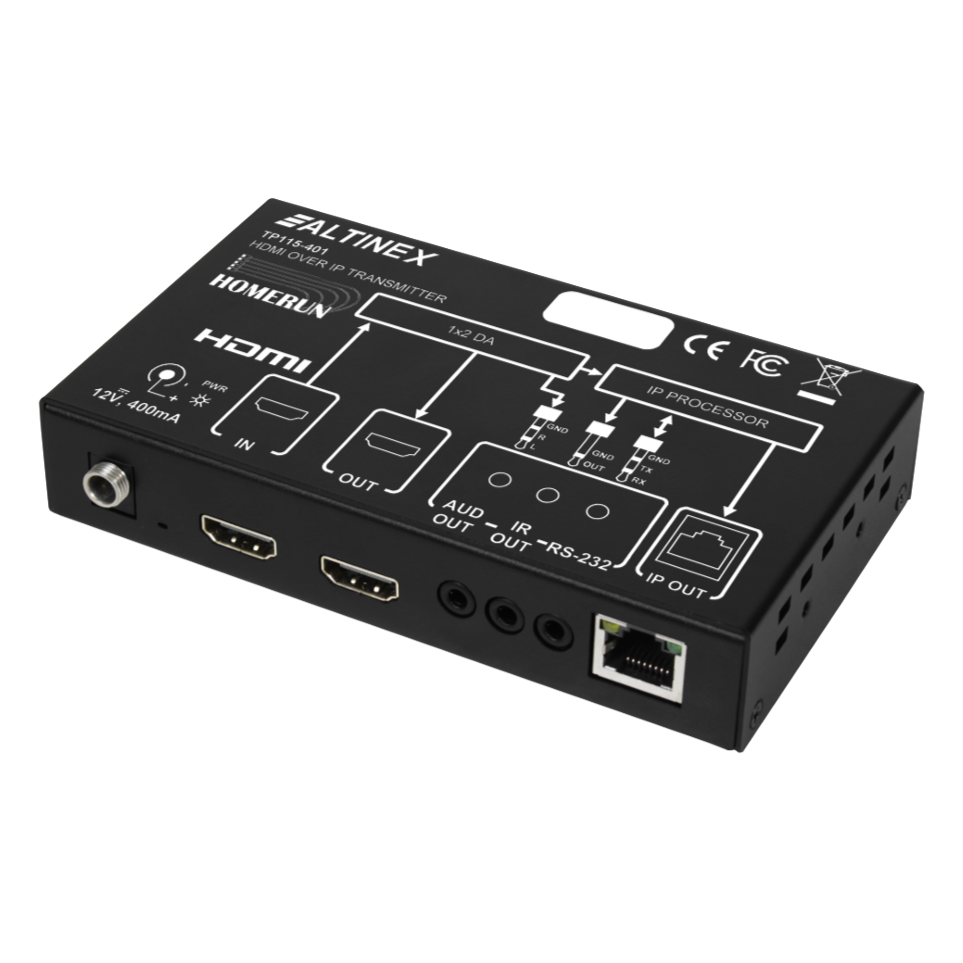

The Altinex TP115-401 is an HDMI over IP transmitter. It transmits HDMI video up to 1080p and computer resolutions 1400x1050 over a local area 1G/10G network. Transmission can be made up to 390 ft using a single CAT5e/6 cable for one transmitter to multiple receivers, or multiple transmitters to multiple receivers using an Ethernet switch. With the TP115-401, and Altinex's coordinating TP115-402 receiver (available for purchase), users can easily create an AV-over-IP matrix incorporating up to 64 transmitters and 180 receivers. The TP115-401 is an easy to install and simple to use solution for many AV installations such as meeting rooms, classrooms, hotel lobbies, sports bars, etc.

High Performance Extender

The TP115-401 is HDCP compliant and supports RS232, IR (infrared control) and audio. It is designed to display video to any receiver (sold separately) on the same network, and allows real-time routing for on-the-fly configuration. The TP115-401 and coordinating Altinex TP115-402 receiver are identifiable over the network using UDP broadcast to obtain individual IP and MAC addresses.

Specifications:

Input connectors: HDMI, HDMI (F) type A, DC power (5-12 VDC), 2.5 mm center pin
Output connectors: Local HDMI, HDMI (F) type A, IP, RJ45 (F), Audio (Analog), 3.5mm
Input Signals: Video, HDMI Standard
Output Signals: Digital Video+Audio, HDMI over IP, Analog Audio, Line Level
Included: Transmitter, Power supply, (+5V, 2A, US, EU, AU, UK pluggable blades)
IR TX, RS232, 3.5mm to DB9 F, 2 brackets, 8 screws
Video Resolutions: 480p, 720p, 1080i, 1080p
Dimensions: 5.3" x 3.1" x 1.1"
Weight: .35 lbs
3 year warranty

Input connectors: HDMI, HDMI (F) type A, DC power (5-12 VDC), 2.5 mm center pin
Output connectors: Local HDMI, HDMI (F) type A, IP, RJ45 (F), Audio (Analog), 3.5mm
Input Signals: Video, HDMI Standard
Output Signals: Digital Video+Audio, HDMI over IP, Analog Audio, Line Level
Included: Transmitter, Power supply, (+5V, 2A, US, EU, AU, UK pluggable blades)
IR TX, RS232, 3.5mm to DB9 F, 2 brackets, 8 screws
Video Resolutions: 480p, 720p, 1080i, 1080p
Dimensions: 5.3" x 3.1" x 1.1"
Weight: .35 lbs
3 year warranty
