Pop Up Conference Table AV Box, 2 Power, 2 Data, 1 HDMI, 1 USB - Silver
| Q&A$409.28
Free shipping on orders over $99

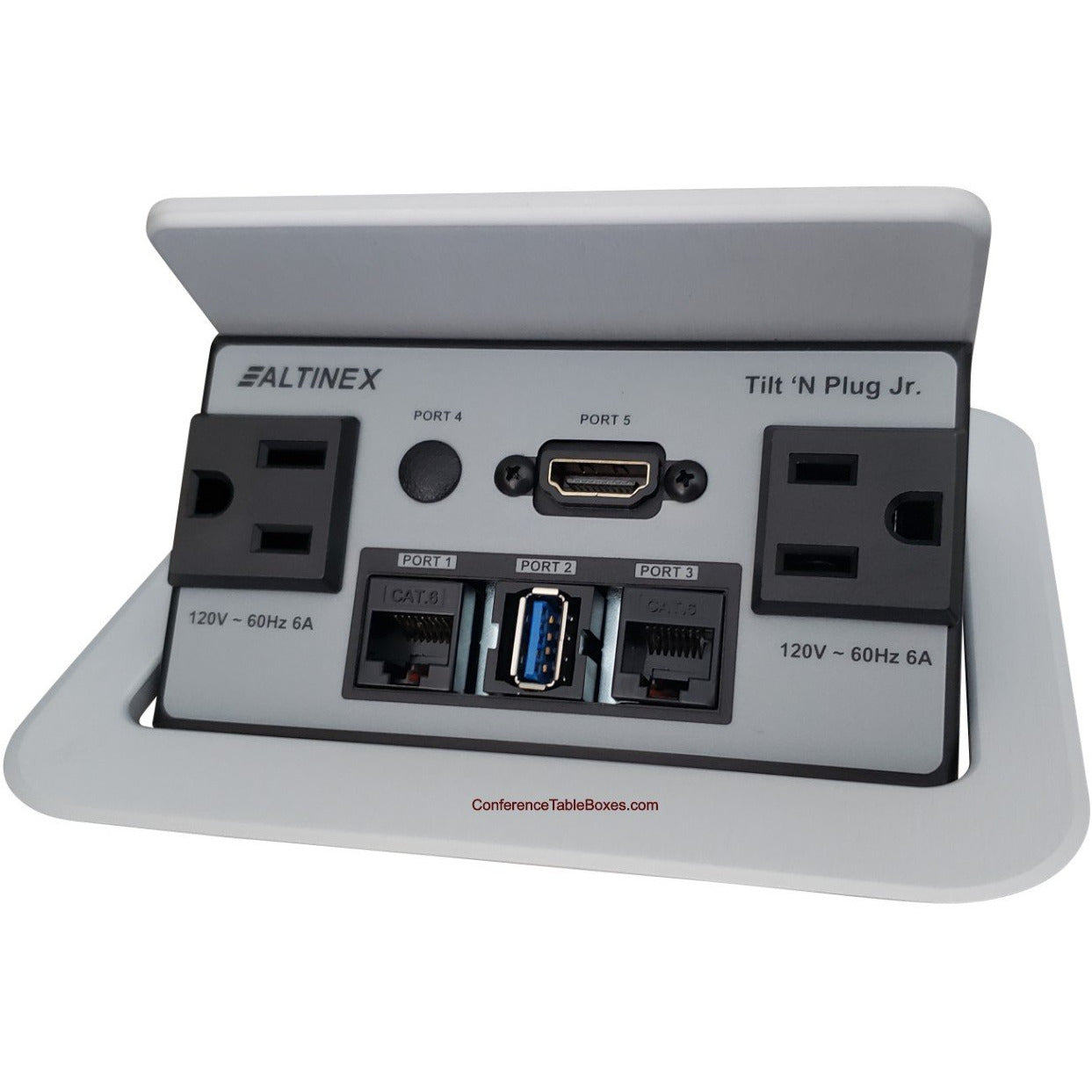

The TNP329CS1 from Altinex is a single sided pop up box enclosure that houses your video, audio, data, and power connections discretely in your conference room table. The cable management box holds 2 power, 1 HDMI, 1 USB 3.0, and 2 RJ45 Cat6 data jacks. If you wish to make the USB charging, simply plug the end of the cable into a USB charging hub.

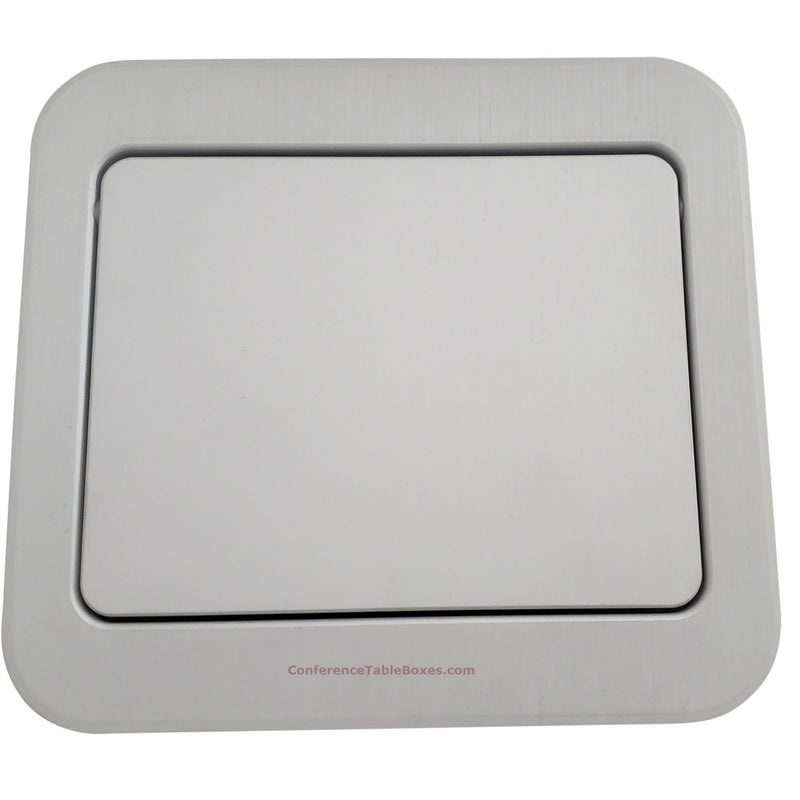

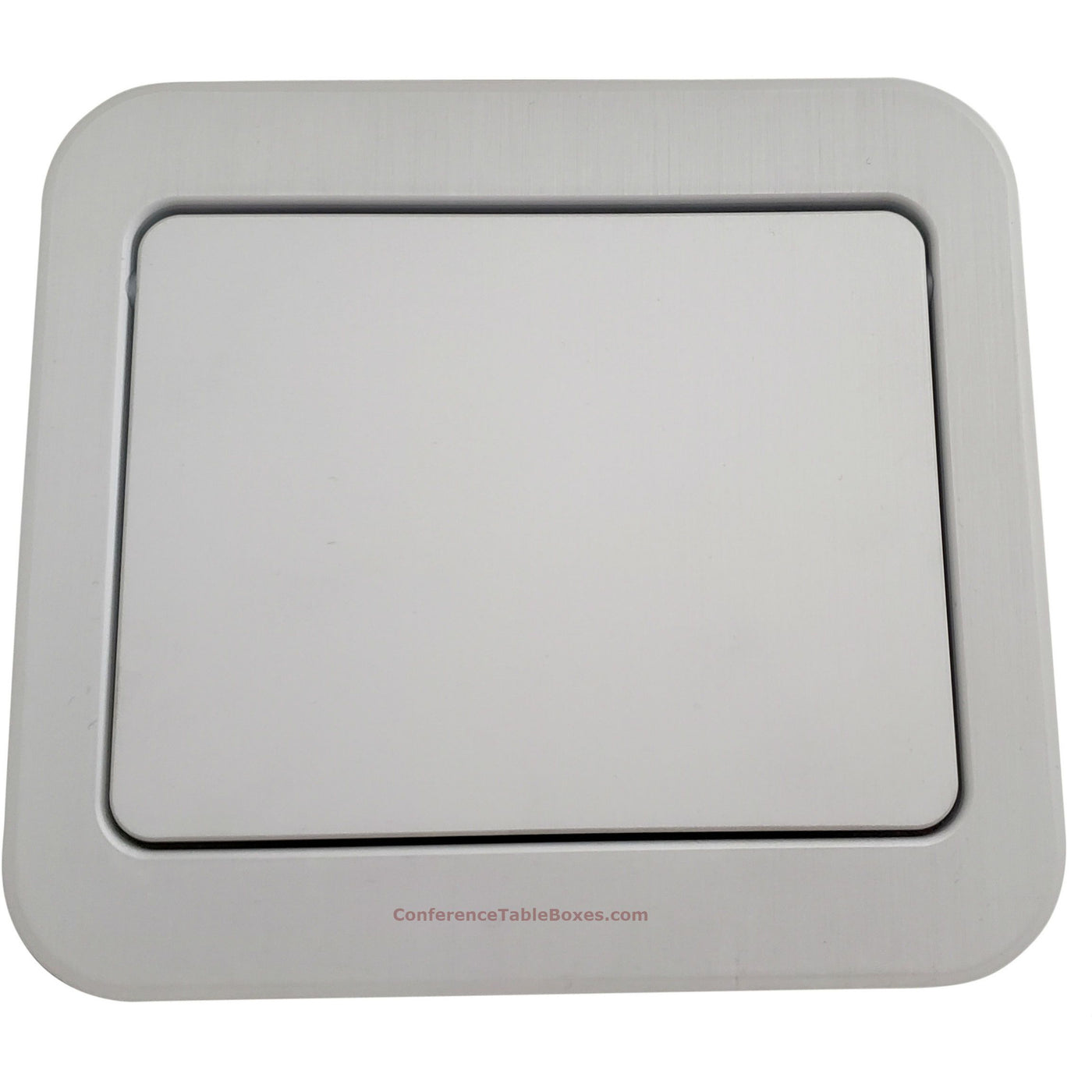

When in the closed position the silver anodized aluminum top is nearly flush with your table, when you press the top the unit flips up at a 45 degree angle so you can plug in your connections. To close, unplug your connections and press the top till it latches and it is back to being hidden in your table. The hydraulic spring provides a super smooth and quiet operation for opening and closing.
The pop up can be installed in table thicknesses up to 2.25", if your table is thicker than this you will need to thin down the table where the pop up is to be installed. After cutting the 5.3" x 4.8" hole in your table, place the pop up in the hole, then secure the unit to the underside of the table with the included brackets. Your cables can then be plugged in, the video and data cables are 6' long with male ends, the power is a single 9' long 3 prong plug cord.
The tilt up box has been UL certified to work in the USA, and cUL certified for installations in Canada. The pop up can be installed in any table surface or podium that wants a concealed way to manage your connections in an attractive, functional, and affordable pop up for nearly any table surface.
Color: Silver anodized aluminum
2 power, 2 RJ45, 1 HDMI, 1 USB
6' male ended AV cables
Single 9' male ended power cable
UL listed for USA, cUL listed for Canada

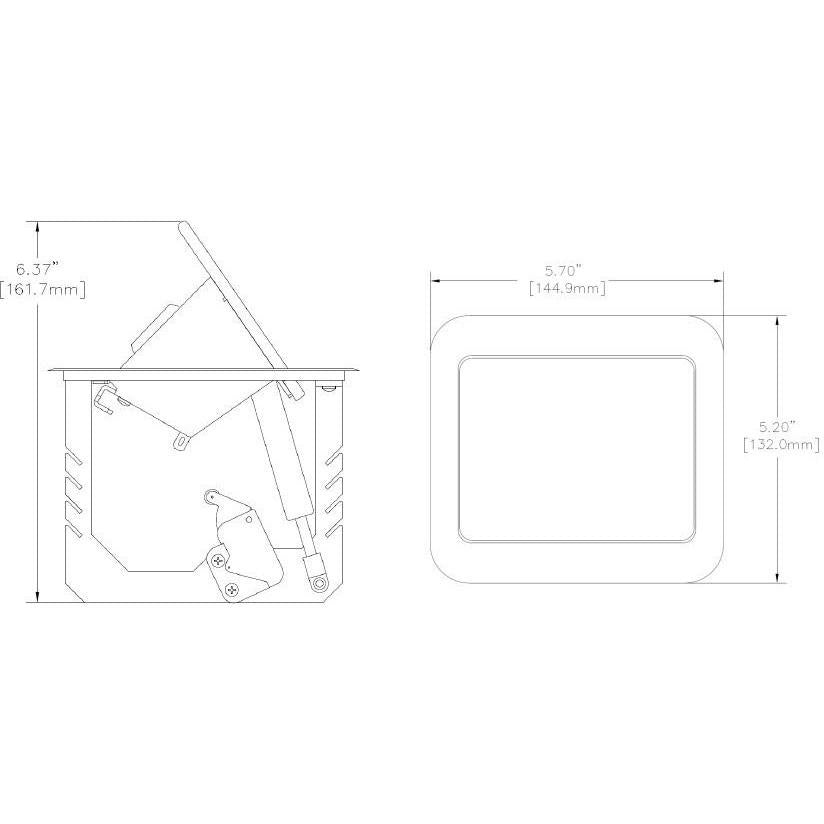

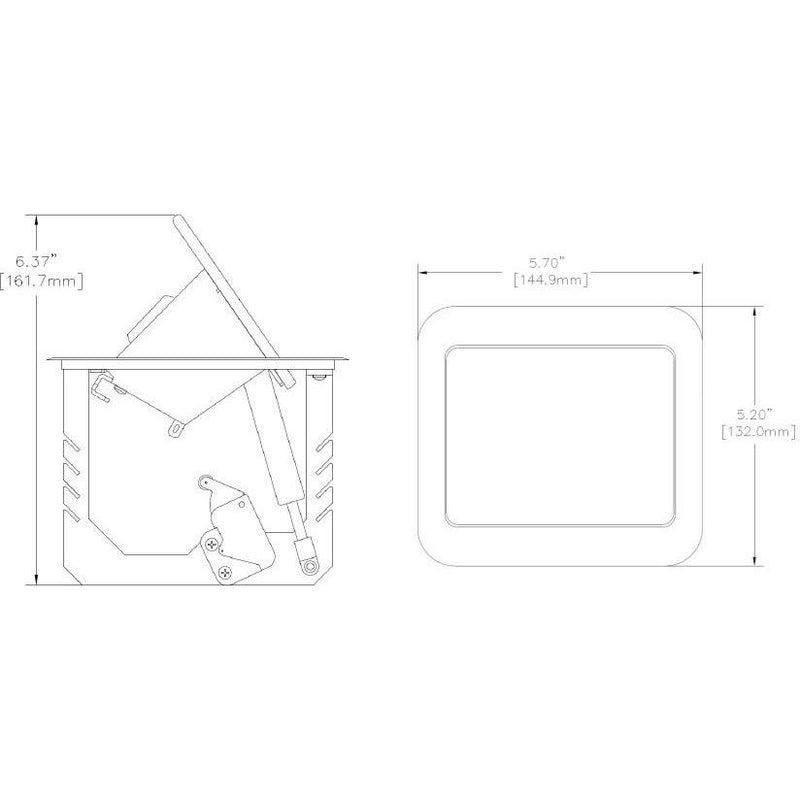

Bezel size: 5.7" x 5.2"
Cutout size: 5.3" x 4.8"
Depth: 3.86"
Pop up height: 2.51"
Works in table thickness up to 2.25"
Weight: 2.8lbs
Includes all mounting hardware
10 year warranty, 1 year on spring
Color: Silver anodized aluminum
2 power, 2 RJ45, 1 HDMI, 1 USB
6' male ended AV cables
Single 9' male ended power cable
UL listed for USA, cUL listed for Canada
Bezel size: 5.7" x 5.2"
Cutout size: 5.3" x 4.8"
Depth: 3.86"
Pop up height: 2.51"
Works in table thickness up to 2.25"
Weight: 2.8lbs
Includes all mounting hardware
10 year warranty, 1 year on spring
